1/14 SCALE R/C SCANIA 770 S 4x2

Length: 469 mm. Image shows painted and assembled kit.

This R/C model assembly kit recreates the Scania 770 S 4x2, a two-axle, high-roof heavy trailer head equipped with a 16.4-liter V8 turbo engine capable of 770hp, added in 2020 to the Swedish manufacturer Scania’s top-grade S Series. The high-roof form is faithfully captured in style with roof high bar and LED light bar, horns, nameboard, drop visor, bullbar, low bar and side bars, letting you create a customized truck like those trendy in Europe. Its ladder frame features aluminum side channels with resin cross members, and power from the front-mounted motor is delivered to the rear axle via a 3-speed transmission and propeller shaft - gear changes are enabled with the use of a separately available 4-channel transmitter. Pair this model with a separately sold Multi-Function Control unit for coordinated lights, sounds and more!

Specifications
●Length: 469mm, width: 193mm, height (without side mirrors and antenna): 315mm, weight: approx. 3.5kg ●Wheelbase: 272mm ●Tread: 155mm (front), 138mm (rear, double tire) ●Chassis: aluminum & polycarbonate resin ladder frame ●Suspension: front/rear leaf spring rigid ●Caster angle (front & rear): 0° ●Camber angle (front & rear): 0° ●Toe angle (front & rear): 0° ●Aluminum dummy dampers (front/rear) ●Rear axle drive ●3-gear transmission (gear shifts via transmitter) ●Gear ratio = (1st gear) 32.49:1, (2nd gear) 17.66:1, (3rd gear) 10.66:1 ●3-bevel differential gear ●Type 540 motor ●Tire width/diameter: 30mm/85mm (front); 22mm/84mm (rear) ●TR Mighty-Tuned Motor (35T) ●Tire width/diameter: 30mm/85mm (front), 22mm/83mm (rear)

Separately Required Items
★R/C system ★Servos x2 ★ESC or Multi-Function Control Unit ★R6/AA/UM3 batteries for transmitter ★Battery pack & charger

Realistic Lights, Sounds, and Vibration
Tamiya Multi-Function Control Units (sold separately) offer light, sound, and vibration operation to accompany your R/C truck experience. Engine sounds have been digitally recorded from an actual truck, and together with air horn, gear shifting, and many other realistic sounds, give you the feeling that you are driving the real thing! Headlights, brake lights, fog lamp, hazard lights and turn signal operations are also at your fingertips.

Semi-Trailers Separately Available
Various types including semi-trailer, tank-trailer, and pole-trailer, are currently available. Attach any one of them via the coupler on the model to create an exciting combination over a meter in length.

Click here to see a product video on our official YouTube channel!

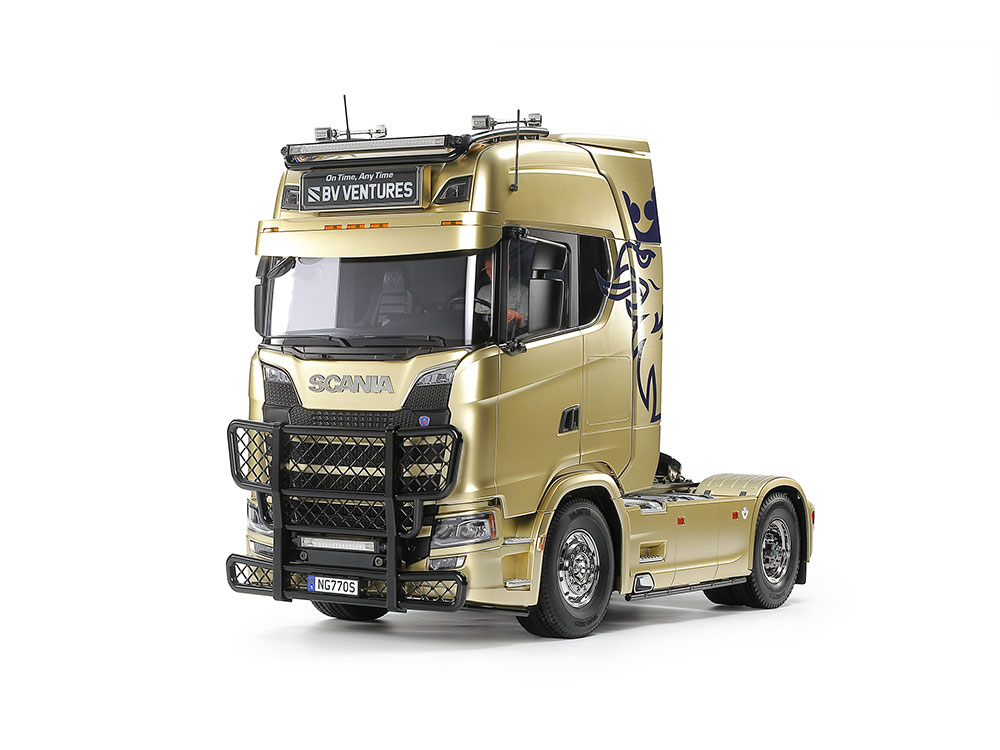

A highly detailed recreation of the majestic Scania 770 S 4x2!
A close-up on the molded plastic bull bar, which is made up of ABS-PC frame and ABS mesh components.
2-section side mirrors are affixed on moving plastic mounts. Kerb mirrors are also recreated.
The roof bar is equipped with a light bar and a nameboard with a choice of 4 decorative stickers.

The antenna and metal plated horns add extra detail to the roof.
Metal plated steps have accurate grip patterns. Headlights and fog lamps have reflectors for use with separately sold LEDs.
Enjoy gear changes with the model's three-speed transmission.
The rear suspension uses a reinforced resin axle and metal leaf springs.

Dual tires are used at the rear, and of course feature realistic tread.
A coupler is included to allow connection of semi trailers from the extensive Tamiya line-up.
Fuel tanks are recreated with accuracy, and side skirt marker lamps can be lit up with separately sold LEDs.
Rear lights are compatible with separately sold LEDs for brake and reverse lights, plus turn signals.

The separately sold Multi-Function Control unit's control box can be stowed neatly inside the exhaust box/fuel tank.
A driver figure is included, as is a stickered representation of the Scania griffin.
